Standard embroidery sits flush with the garment surface — the stitching adds texture and dimension, but the decoration lies flat against the fabric. Puff embroidery does something different. A layer of foam is placed under the stitches before they're sewn, and the embroidery rises above the fabric surface, creating a distinctly three-dimensional result that catches light, casts shadow, and commands attention in a way that flat embroidery doesn't.

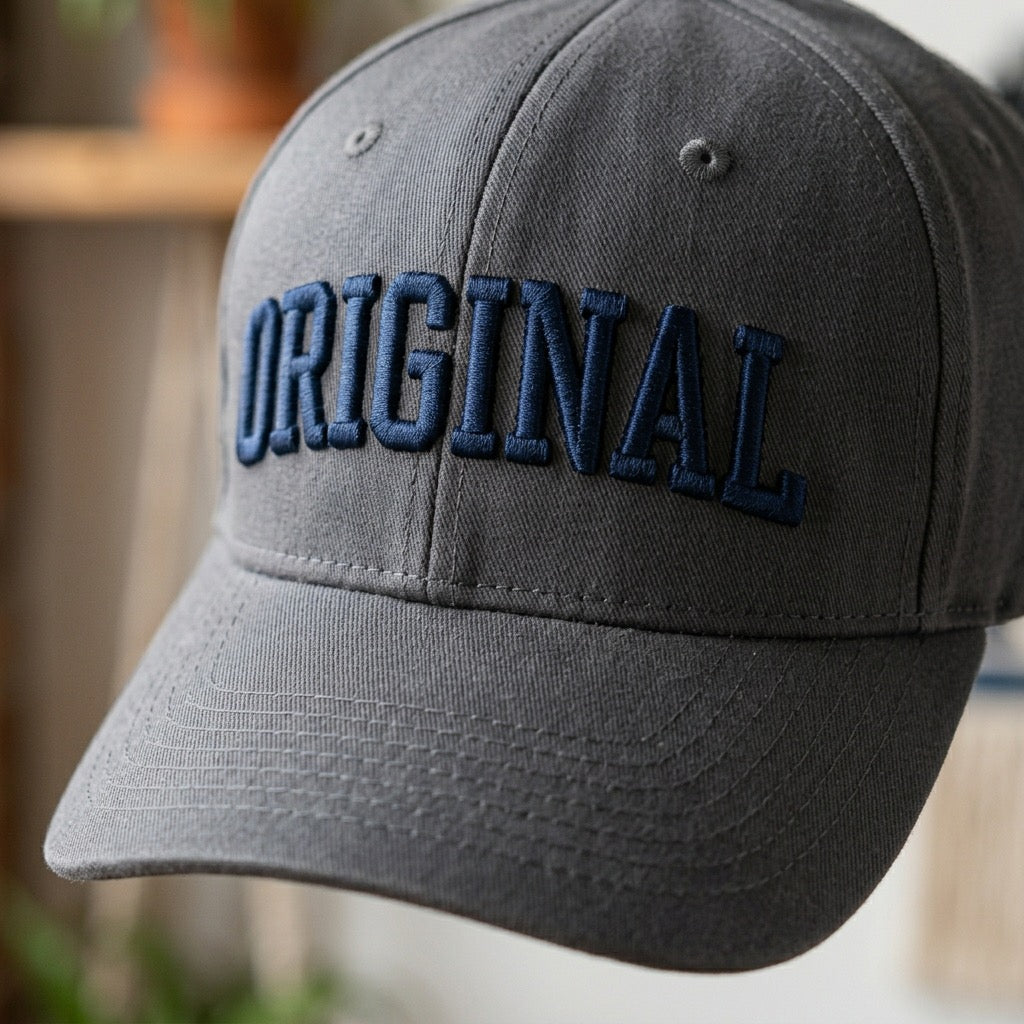

If you've seen caps where the logo seems to physically lift off the front panel — clean, bold, almost sculptural — that's puff embroidery. Here's how it works, when it makes sense, and how to spec it correctly.

The mechanics

The process starts with the digitising. A puff embroidery file is digitised differently to a standard embroidery file — the stitches are programmed to run at a height that accommodates and traps the foam layer beneath them, rather than lying flat against the fabric. The foam (typically 3–6mm thick, made from craft foam or EVA foam) is cut roughly to the shape of the design element being puffed and placed on the garment during production. The embroidery machine then stitches over and around the foam, securing it and encasing it under the satin stitches of the design.

The foam that extends beyond the embroidery is torn away after production, leaving only the foam that's captured under the stitching. The result is a raised, three-dimensional decoration that maintains the precise shape of the embroidered design.

What works in puff embroidery

Puff embroidery rewards bold, simple shapes. The technique emphasises mass and volume — it makes a design look more physically substantial. This works exceptionally well for:

• Bold wordmarks: A brand name in a strong, wide-set font. The raised lettering has significant visual weight and reads clearly at a distance.
• Simple graphic marks: A logo icon, a symbol, a simple shape. Anything with solid, closed shapes that the foam can fill cleanly.
• Single-element designs: One dominant element in puff, with flat embroidery for supporting elements. This creates contrast between the raised focal point and the flat surrounding stitching, which amplifies the three-dimensional effect.

What doesn't work well in puff embroidery:

• Fine lines and thin strokes: The foam cannot be inserted cleanly into very narrow design elements. Lines thinner than approximately 5–6mm typically collapse or look uneven in puff.
• Small text: Any text small enough that individual letters lose their shape under the foam is wrong for puff. Puff is a technique for large, bold elements — not for fine detail.
• Complex multi-element logos: A logo with many components, fine detail, and varied stroke widths is poorly suited to puff. Simplify or use flat embroidery for complex logos.

Foam height and product compatibility

Foam for puff embroidery comes in different heights — typically 3mm, 4.5mm, or 6mm. The choice affects how dramatically the design protrudes from the surface. For caps, 4.5–6mm foam produces the most visible puff effect on the structured front panel. For softer garments (tees, sweats), lower foam height (3–4.5mm) is more appropriate because very thick foam on a soft substrate can create a stiff, uncomfortable patch.

Puff embroidery works best on stable, firm surfaces. Structured cap front panels are the ideal substrate — the buckram inside the panel provides the rigidity that allows the puff to stand cleanly without distortion. Softer substrates (unstructured caps, fleece, lightweight tees) are more challenging because the fabric moves and compresses in ways that can distort the foam.

Cost and lead time

Puff embroidery costs more than flat embroidery — the foam material, the additional setup time, and the skill required in production all contribute to a higher per-unit cost. Typically 20–40% more than the equivalent flat embroidery. For caps and hero products where the decoration quality is central to the brand positioning, this premium is appropriate. For secondary items or large-volume orders where cost is the primary constraint, flat embroidery is the practical choice.

Lead time is the same as standard embroidery: 10–15 business days from artwork approval for most orders. Request a stitch-out before production for any new puff embroidery design — the physical result is the only reliable way to assess whether the foam height, the design adaptation, and the digitising are producing what you want.
